Elrgance XL

The Elegance XL System, designed for new construction, is powerful enough to provide lighting control and dimming activities for an entire property. Planned lighting control decreases energy waste by automating when and where lighting will be used. The system's smart dimming controls reduce power consumption and extend light bulb life. Elegance XL offers the ability to program the perfect lighting arrangement for every room and situation. The system manages up to 200 lighting scenes and 50 timed events. The resident astronomical clock automatically calculates day length throughout the year and adjusts programs as needed. Intuitive, PC-based software is included for system configuration.

System Description:

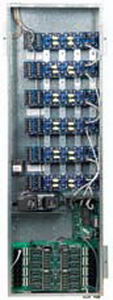

Elegance XL is a centralized panel-based dimming system capable of controlling up to 192 lighting loads (zones) and a host of other electrical and motorized devices. Through the use of accessories Elegance XL provides energy management, comfort, convenience, safety and security to residential and commercial customers.
Features:
• Maximum number of controlled loads (zones): 192
• Phase controlled dimming capable of 2,048 dimming levels
• 24-load panel configuration: 6 modules x 4 dimmers each
• Panel capacity: 72 amps, average of 4 amps per load
• Maximum load per dimmer: 8 amps
• Maximum load per module: 16 amps
• 3-Phase compatible
• CAT5 low voltage wiring
• Each dimming panel contains 1 SuperSTAR dry contact-closure
Input board
• 96 input maximum per SuperStar; 384 input max per system
• RJ45 and punch down block connections provided
• MCP (Master Control Panel) supports up to 4 SuperSTAR
• 2 RS-232 ports for communicating to third party systems
• Standard vacation and alert modes
• Soft on/off
• All on/off mode
• Astronomical (real time) Clock – Allows programming of up to 50 timed events, including events relative to sunrise/sunset
• Manual Override - Provides on/off control of individual loads, bypassing the MCP
• Multiple keypad and color options available

Elegance XL Part Numbers: Click here

(Top of Page)

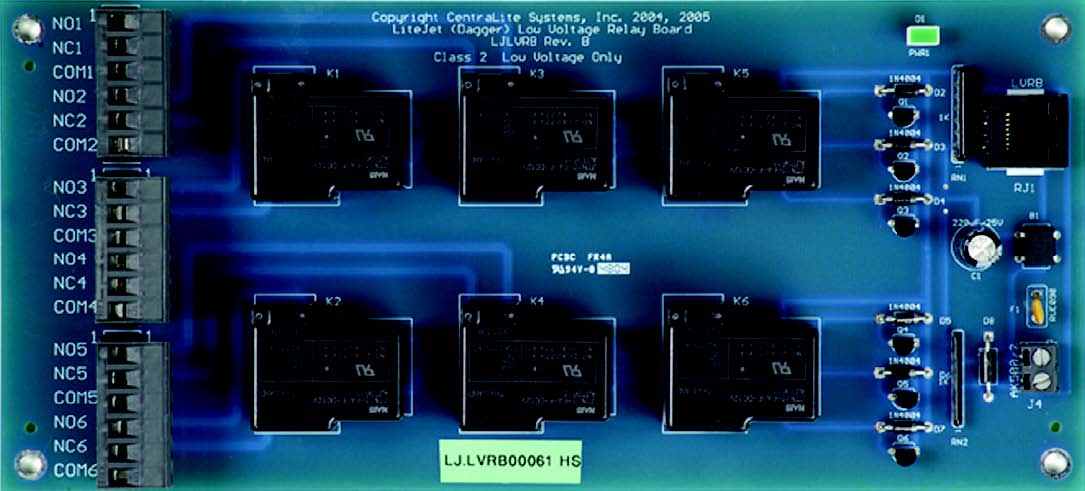

LiteJet

LiteJet™ is revolutionizing the lighting control market by providing
features traditionally found in expensive, high-end systems, in an easy to install, simple to use, and incredibly affordable package. Centralized controls are used to create artistic scene lighting to accentuate your home's décor. Dimming levels may be set for both interior and exterior lighting to create dramatic and aesthetically beautiful scenes. LiteJet's robust centralized dimming system will transform your home into a beautiful showcase.

Standard Features
• Maximum number of Lighting Zones per unit: 24
• Dimming Method: Phase Controlled
• Standard Dimmer Capacities: 8 amps (1000W)
• Maximum number of Scenes per unit: 30
• Maximum number of Inputs per unit: 96
• Maximum number of Timed Events: 12
• Keypad/Control Wiring: CAT5
• Connectors: RJ45
• 3 Phase Compatible
• Astronomical (real time) Clock
• 3rd Party RS-232 Ports: 2
• Vacation/Alert Mode
• All On/Off Mode, Soft On/Off
• Power Requirements: 120V/240V Model: 60/50 Hz
• Standard warranty: 5 year limited warranty from date of startup
• Regulatory/Safety Conformity: UL, C-Tick, Title 24 Compliant

LiteJet Part Numbers: Click here

(Top of Page)

JetStream

Simplify your life with the incomparable JetStream Lighting Control System from CentraLite Systems. Virtually invisible in your home, JetStream uses innovative wireless technology to instantly control any, or all, of your home's lighting sources with a press of a button. JetStream uses embedded technology to allow its intelligent keypads to broadcast directly to each other so no master controller is needed. Professional installation is fast and easy. Simply replace existing light switches with new JetStream dimmers and keypads and the system is ready to operate in minutes.

JetStream uses wireless, radio frequency technology and existing wiring in a home or business to create a distributed lighting control system. JetStream's Zigbee™-based technology creates a self-forming, self-healing, mesh network that is easy to install and operate. Nodes (devices) act as repeaters to transmit data from nearby devices to devices that are too far away to reach. Dynamic routing algorithms built into each device ensure that the data transmitted takes the most efficient route to its destination; creating a very robust, yet low cost, and reliable networking solution. JetStream can easily be expanded to 200 devices. Choose from 1- or 3-button dimmers or keypads, accessory keypads, lamp modules, tabletop controllers, and a car remote. All devices are easily added to the system..
Features:
• Up to50 timed events (Required RS-232 or Ethernet Bridge).
• 512 dimming levels.
- Preset dimming levels for each load
- Every load is capable of dimming.
- Soft On/Off 0 - 800 seconds each control.
• Simple installation and configuration.
• Intuitive PC configuration software accessible (required RS-232 bridge)
• Configuration is stored in each device. A backup files also created on the PC during configuration.
• Standard warranty: 5 year limited warranty
• Regulatory/Safety Conformity: ETL, Title 24 Compliant

JetStreem Part Numbers: Click here
