How HAI Omni-Bus Works
Power modules feed power to dimmer or non-dimming switches. Each switch wires to a DIN rail module. The power for the circuit also goes to these DIN rail modules, thus switches are not directly wired to lights but rather to the modules controlling the lights. As with third-party solutions, Omni-Bus lighting works by a low voltage wire from the hardwired switch to the dimmer DIN rail module, but with the distinctive advantage of being an HAI product.
Integrating with an HAI Home Control System
Omni-Bus Products work as stand-alone or with an HAI Home Control System.
An HAI home control system has the ability to change your light settings by the time of day, a set schedule, by the triggering of events (including motion), via a telephone call, Touchscreen, Smartphone, or by a computer connected to the Internet.
The Home Lighting Control Alliance says that dimming your lights by 25% saves 20% of the energy used and extends bulb life by 10 times. Dimming your lights by 50% saves 40% in energy and extends bulb life by 20 times. HAI systems can automatically set lights to any percentage, saving you money every time a light is turned on.
Your HAI system can automatically turn off all of the lights in the house when you leave in order to lower your electric bill.

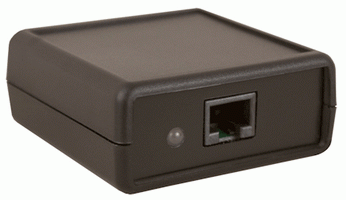

The "gateway" of the Omni-Bus system, this devlice allows HAI Controllers (OmniLT, Omni IIe, OmniPro II, Lumina, and Lumina Pro) to interface with an Omni-Bus lighting network.
Required Omni-Bus component designed for International markets that use 220-240V~, 50Hz.
Controls 220V incandescent, 220V Halogen, low voltage electronic transformers, and low voltage magnetic transformers. Includes jumper to create leading edge to control rope lighting, track lighting, LED.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
111A00-1
Omni-Bus 3000W Power Switch Din Rail
Controls general purpose resistive including motors, flourescent lighting, and ceiling fans: 3000W (13A) @ 230V~, Motor: 4HP (3000W) @ 230V~, Ballast (Fluorescent lights): 3000W @ 230V~, Low Voltage Transformer: 3000W @ 230V~.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
Controls up to 4 general purpose resistive loads including irrigation valves, gates, doors, and lighting up to 460W: 460W (2A) @ 230V~ or for general purpose low voltage switching applications.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
Connects up to (6) third-party switches to the Omni-Bus network and has 6 LED outputs to control 2-lead bi-color or single color LED indicators for each switch.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
114A01-1
Omni-Bus Cable Assembly for Universal Switch Interface Module
Cable assembly for Omni-Bus Universal Switch Interface Module 114A00-1. 150mm Cable Assembly used to connect a switch input or LED output of the 114A00-1 to third-party switch. One cable is required for each input or LED output. 114A00-1 is sold separately.
Omni-Bus component designed for international use; 220-240V~, 50Hz; not for use in the U.S.
113A00-1
Omni-Bus 1-Button Wall Switch - White
1-Button hardwired switch; controls dimmer, power switch, relay, or input into HAI controller.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
113A00-2
Omni-Bus 1-Channel Wall Mount Remote Control - White
1-Button wireless switch; controls dimmer, power switch, relay, or input into HAI controller; requires 115A00-1 RF Transceiver.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
113A00-3
Omni-Bus 2-Button Wall Switch - White
2-Button hardwired switch; controls dimmers, power switches, relays, or inputs into HAI controller.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
113A00-4
Omni-Bus 2-Channel Wall Mount Remote Control - White
2 Button wireless switch; controls dimmers, power switches, relays, or inputs into HAI controller; requires 115A00-1 RF Transceiver.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
113A00-5
Omni-Bus 3-Button Wall Switch - White
3- Button hardwired switch; controls dimmers, power switches, relays, or inputs into HAI controller.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
113A00-6
Omni-Bus 3-Button Wall Switch - White
3-Button hardwired switch; brushed stainless steel; controls dimmers, power switches, relays, or inputs into HAI controller.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
113A00-7
Omni-Bus 3-Channel Wall Mount Remote Control - White
3-Button wireless switch; controls dimmers, power switches, relays, or inputs into HAI controller; requires 115A00-1 RF Transceiver.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
113A00-8
Omni-Bus 6-Button Wall Switch - White
6-Button hardwired switch; controls dimmers, power switches, relays, or inputs into HAI controller.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
113A00-9
Omni-Bus 6-Button Wall Switch - Brushed Stainless
6-Button hardwired switch; brushed stainless steel; controls dimmers, power switches, relays, or inputs into HAI controller.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
125A00-1

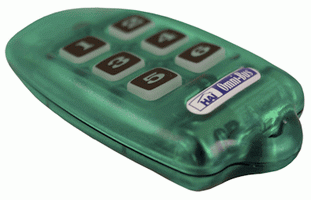

Keyfob Remote Control, 6 Channel
Controls dimmer, power switch, relay, or inputs into HAI controller. 6-Channel Wireless RF transmitter; keyfob, requires 115A00-1 RF Transceiver.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
125A00-2

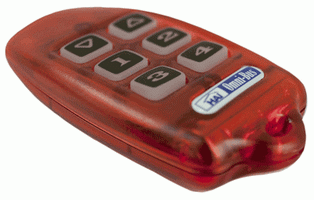

Keyfob Remote Control, 16 Channel
Controls dimmer, power switch, relay, or inputs into HAI controller. 16-Channel Wireless RF transmitter; keyfob, requires 115A00-1 RF Transceiver.
Omni-Bus component designed for International markets that use 220-240V~, 50Hz
